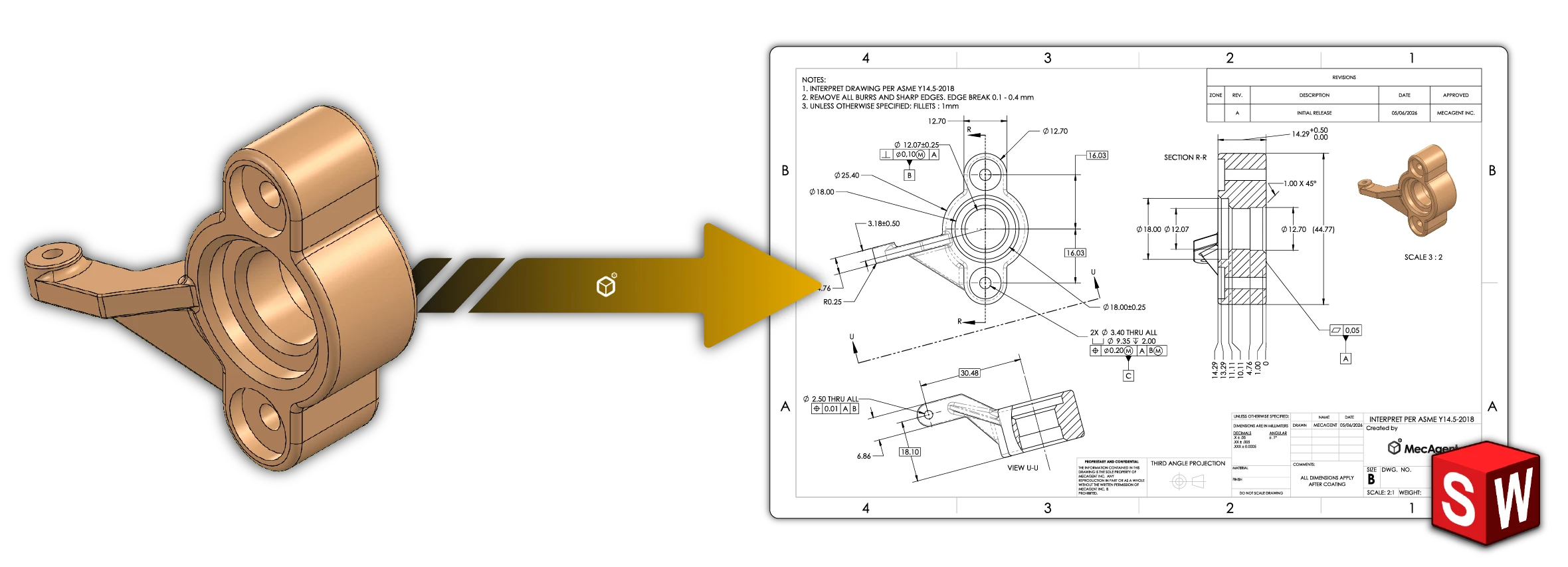

Upload your 3D model and receive a fully-annotated engineering drawing.
See how MecAgent Drawings works
Upload your parts in five minutes, and let MecAgent’s background agent take care of the rest.
Generate ISO- and ASME-compliant engineering drawings with automated dimensions, tolerances, and GD&T, all through an intuitive interface.
Datums, tolerances, position, flatness, perpendicularity, all auto-assigned based on your surface selection.
Drawings follow the standard you choose. Title block, tolerances, and views are auto-formatted.
Download your drawings as a PDF or in its native CAD format, while keeping it linked to the part’s 3D geometry. Any changes to the model automatically update the drawing.
Orbit, zoom, and click individual faces in the 3D viewer to select datum surfaces and critical features.
