01Text-to-CAD, Spec-to-CAD
Describe a part and the agent models it, feature by feature, in your open session.
Demo
AI for CAD, in action
Every use case on video: live in SolidWorks with the CAD Agent, or handed off to Background CAD Tasks.
Book a demoCAD Agent· 11
Live in your SolidWorks session
The CAD Agent works in the part or assembly you have open: it models, edits, renames, exports and automates, straight into your feature tree.
02STEP-to-CAD
Turn a supplier STEP into an editable part with a real feature tree.
03Parts in assemblies
Design a new part in the context of your assembly, then mate it.
04Exploded view
Ask for an exploded view of your assembly and the agent builds it, step by step, in SolidWorks.
05Materials & Design
Apply your materials and appearances to every part in one prompt, then update the mass.
06Equations & Configurations
Drive dimensions with global variables and equations, and generate configurations you can switch later.
07Motion
Set up a motion study from a sentence: mates, motors and the animation of your assembly.
08Renaming
Rename files and parts to your naming convention, with every reference kept.
09Export
Export STEP, PDF and DXF files in one go, ready for your supplier.

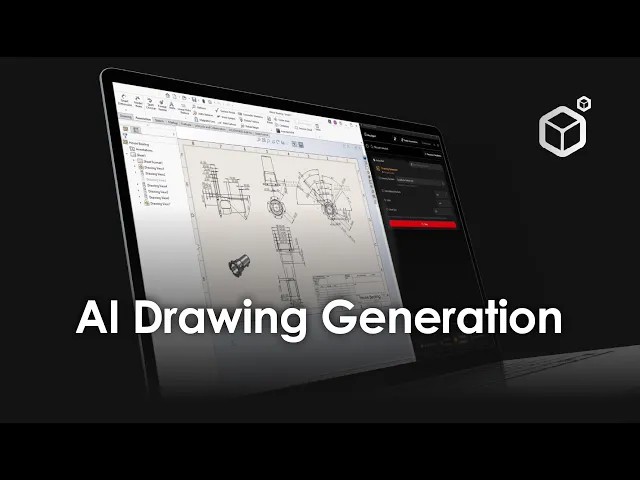

10CAD-to-Drawing
Get a dimensioned drawing of the part or assembly you have open, right in your session.

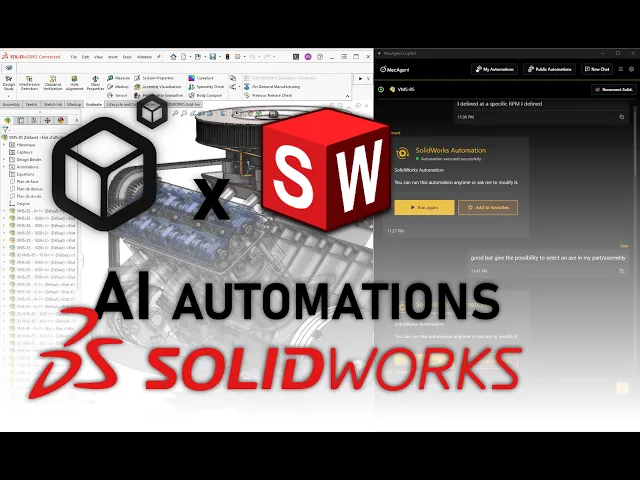

11Macros
Turn any task into a macro you can run again in one click.
Background CAD Tasks· 04
Hand it off, keep modelling
Send a job and get files back while SolidWorks stays free for you: drawings from CAD, and CAD from drawings, text or STEP files.
Every background task can also run live with the CAD Agent, right in your open SolidWorks.

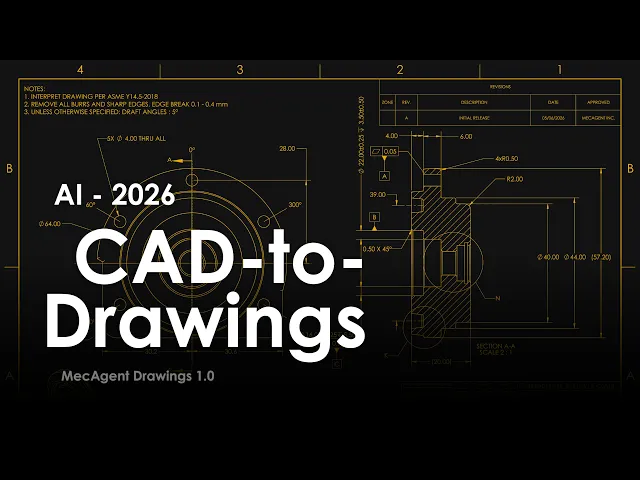

12CAD-to-Drawing
Send a part or an assembly and get a dimensioned drawing back.
13Drawing-to-CAD
Send a PDF drawing and get an editable SolidWorks part back.
14Text-to-CAD, Spec-to-CAD
Send a written brief and get a modelled part back while you work on something else.
15STEP-to-CAD
Send a STEP file and get a native part with a feature tree back.
Next step
Get started with MecAgent
Describe the part. MecAgent builds it in SolidWorks.
