Demo

AI for CAD, in action

Every use case on video: live in your CAD software with the CAD Agent, or handed off to Background CAD Tasks.

Book a demo
Live CAD Agent· 16

Live in your CAD session

The CAD Agent works in the part or assembly you have open: it models, edits, renames, exports and automates, straight into your feature tree.

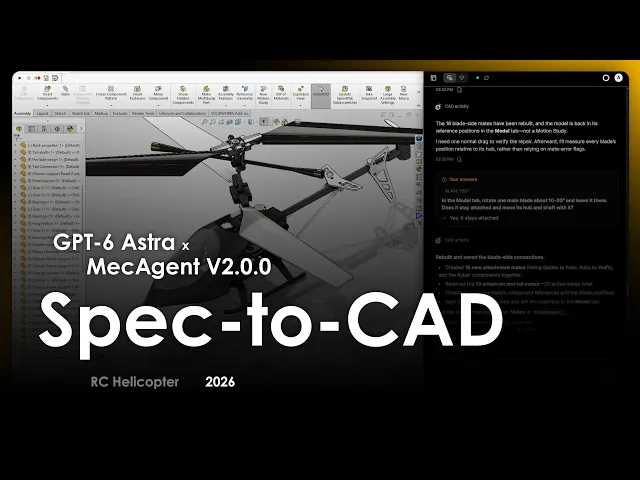

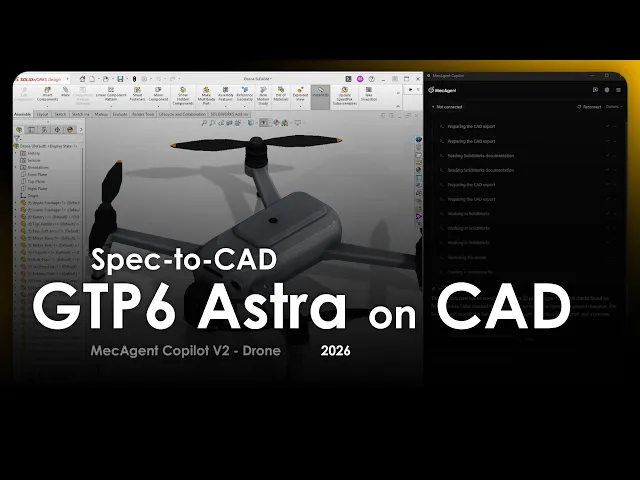

01Text-to-CAD, Spec-to-CAD

Describe a part and the agent models it, feature by feature, in your open session.

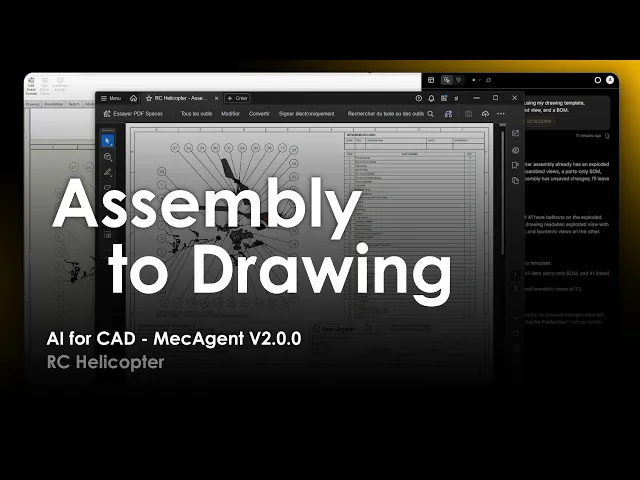

02CAD-to-Drawing

Get a dimensioned drawing of the part or assembly you have open, right in your session.

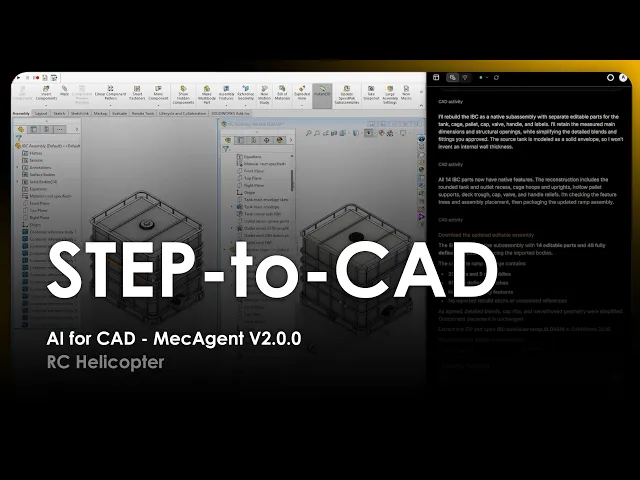

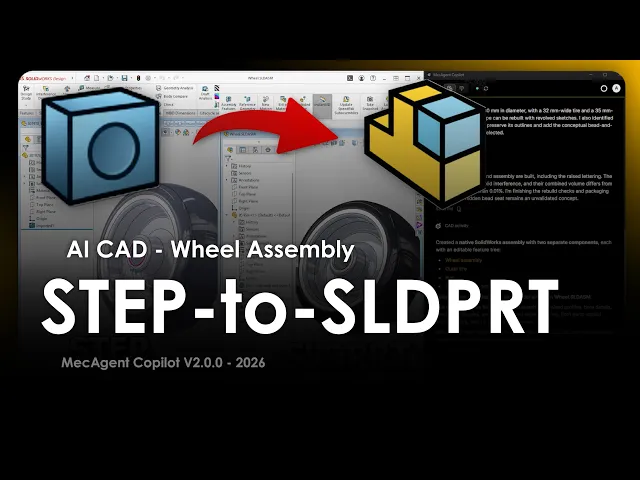

03STEP-to-CAD

Turn a supplier STEP into an editable part with a real feature tree.

04Sketch-to-CAD

Draw a rough sketch and the agent turns it into a solid part, in your open session.

05Parts in assemblies

Design a new part in the context of your assembly, then mate it.

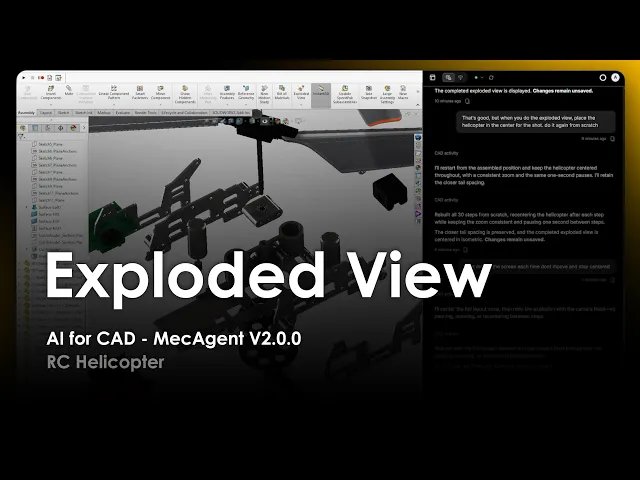

06Exploded view

Ask for an exploded view of your assembly and the agent builds it, step by step, in your CAD software.

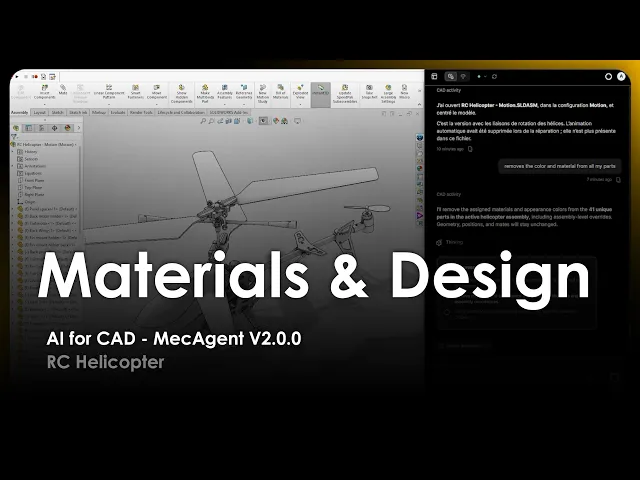

07Materials & Design

Apply your materials and appearances to every part in one prompt, then update the mass.

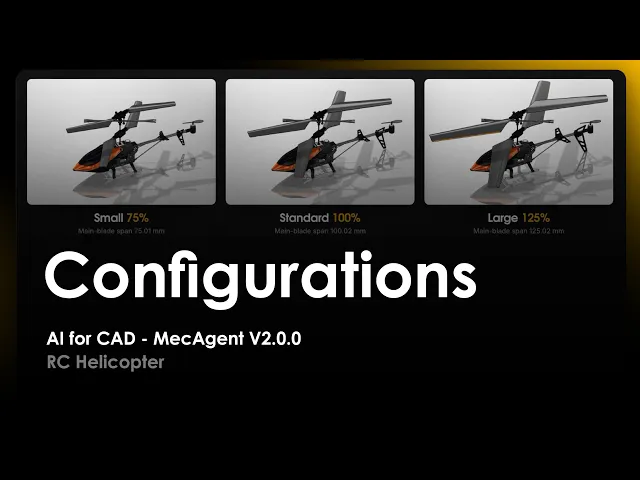

08Equations & Configurations

Drive dimensions with global variables and equations, and generate configurations you can switch later.

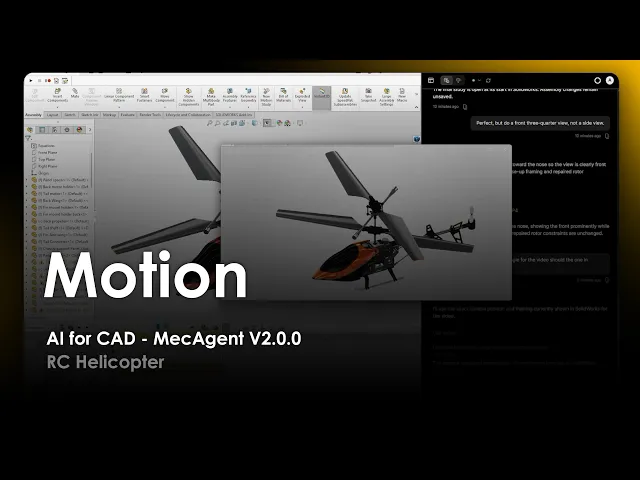

09Motion

Set up a motion study from a sentence: mates, motors and the animation of your assembly.

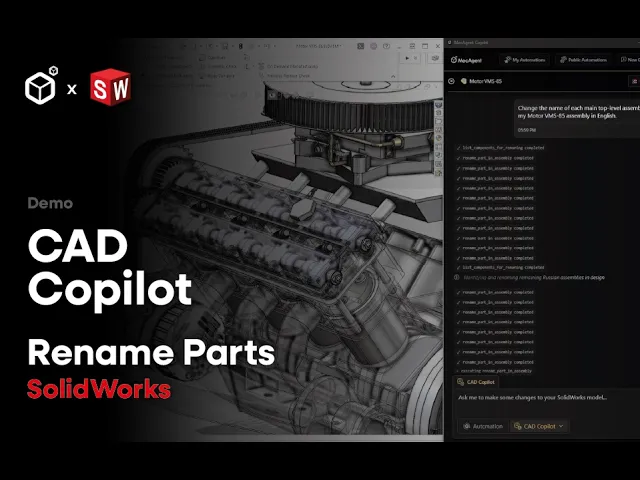

10Renaming

Rename files and parts to your naming convention, with every reference kept.

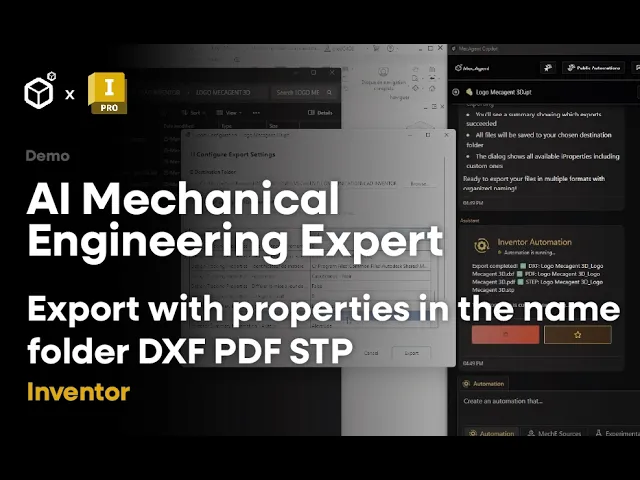

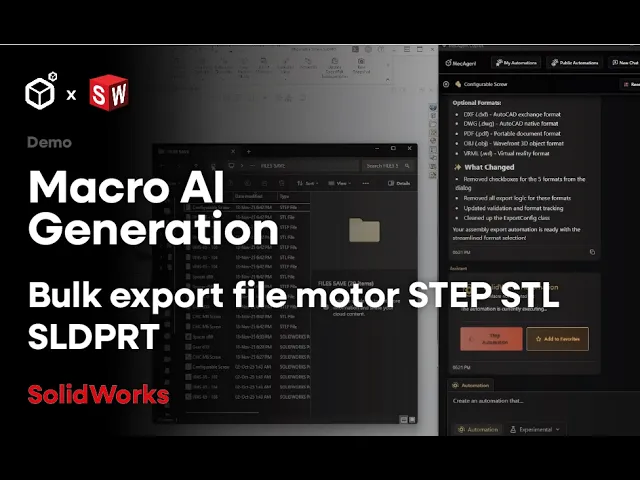

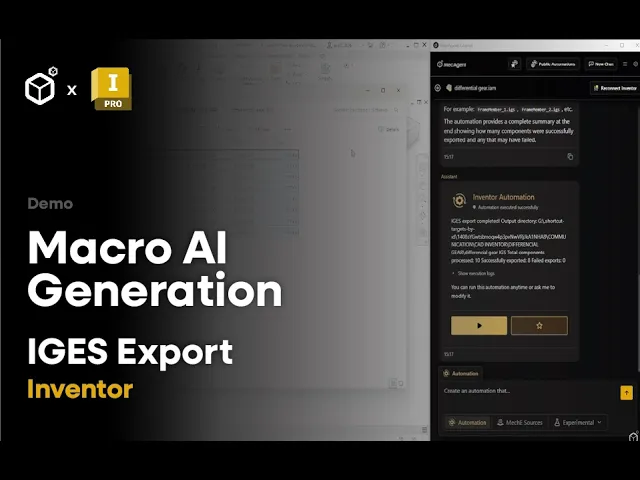

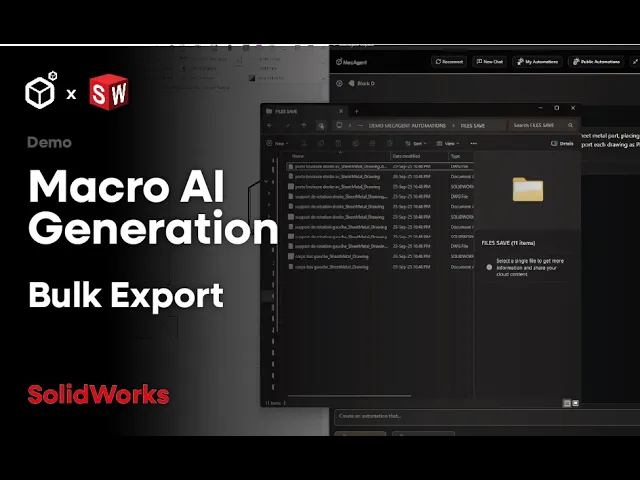

11Export

Export STEP, PDF and DXF files in one go, ready for your supplier.

12Drawing Modification

Change an existing drawing from a prompt: templates, views and annotations, right in your session.

13Manufacturing Process

Switch a part to another manufacturing process and the agent reworks the model to suit it, in your open session.

14Tolerancing

Ask for a tolerance stack-up on your assembly and the agent runs the analysis and reports the result, in your open session.

15FEA / Simulation

Get a model ready for simulation: the agent defeatures it, removing the fillets, holes and small details the mesh does not need, in your open session.

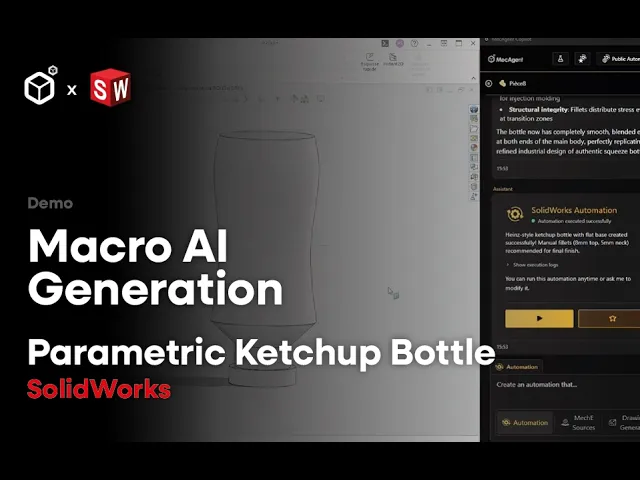

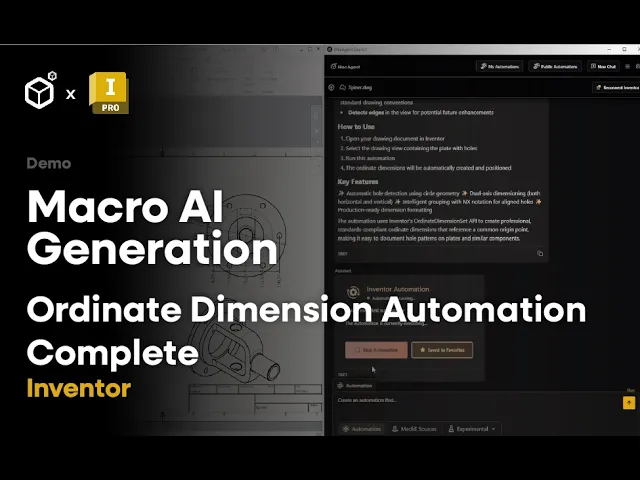

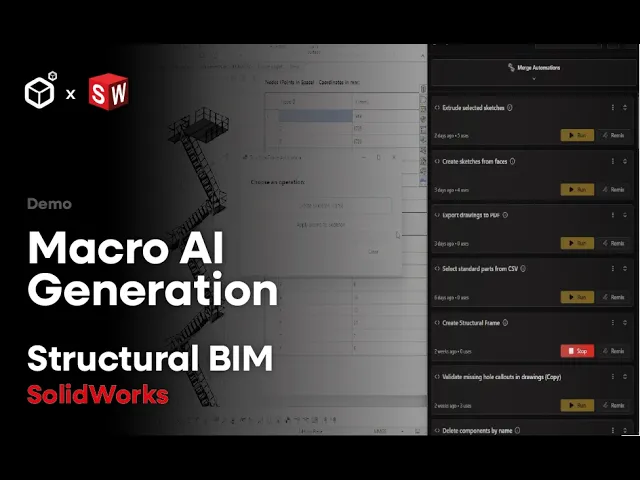

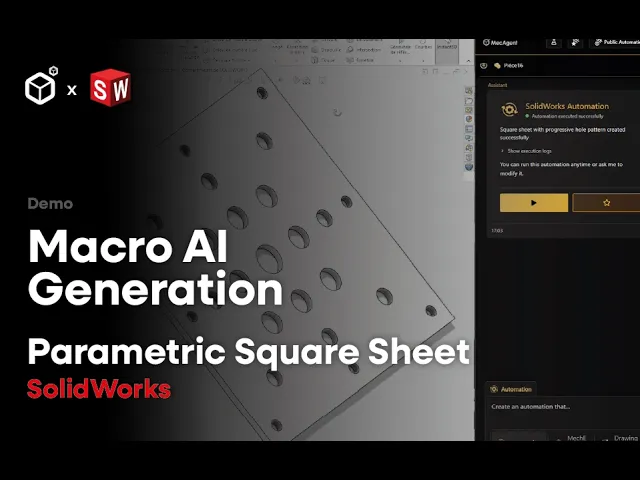

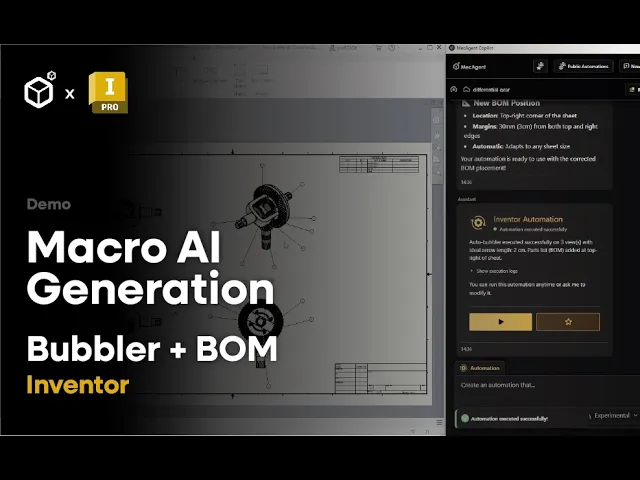

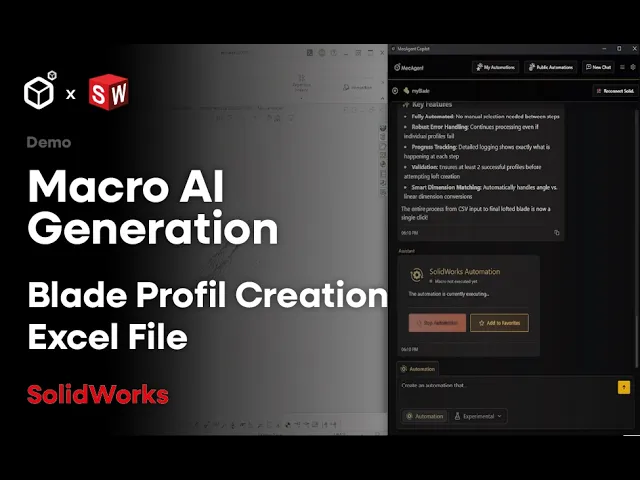

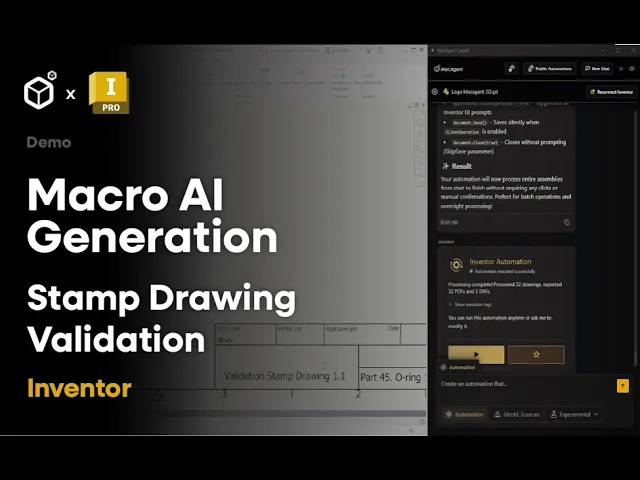

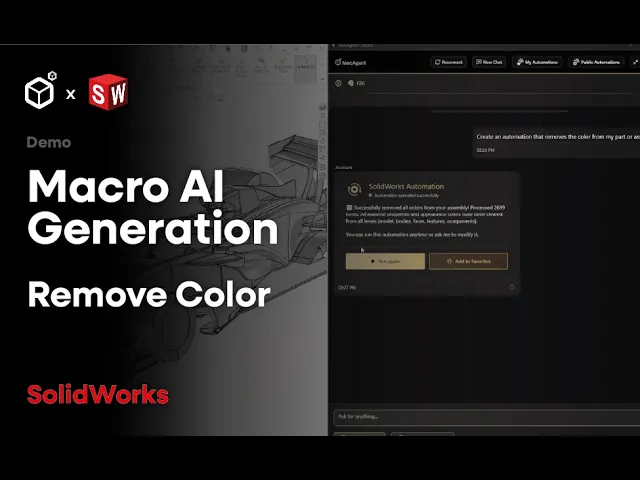

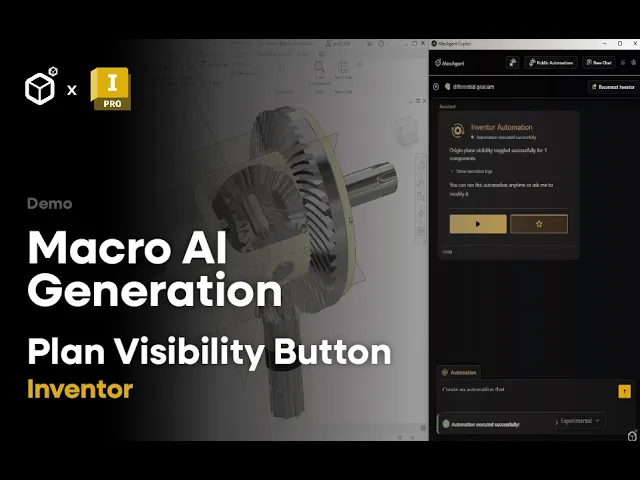

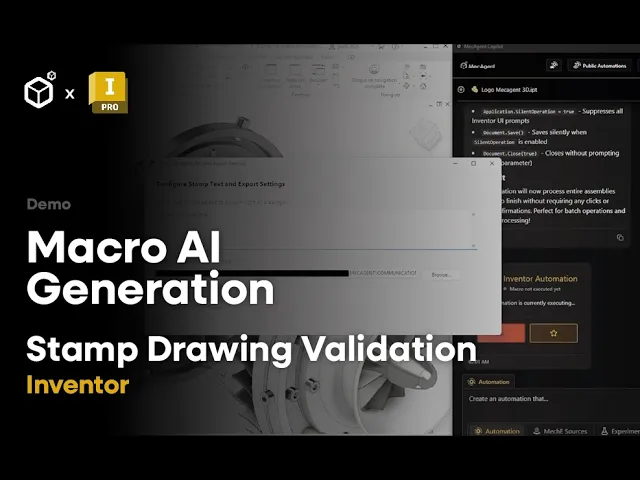

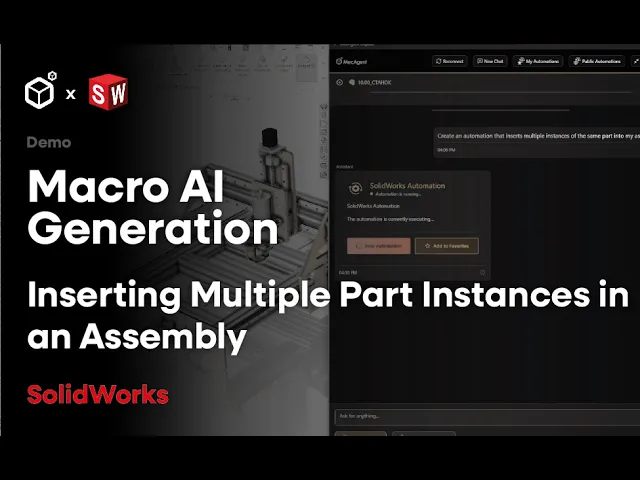

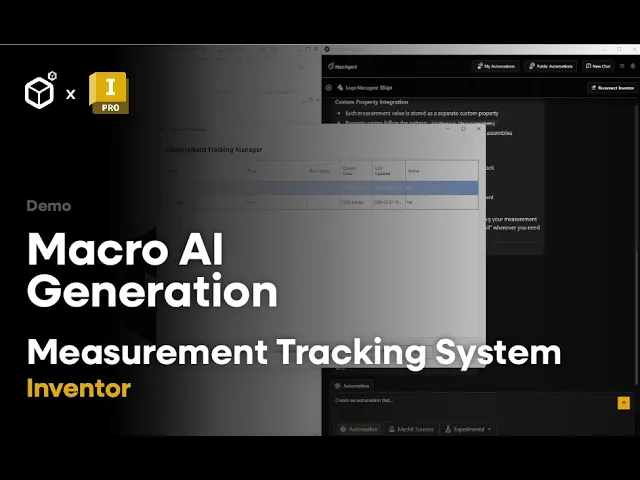

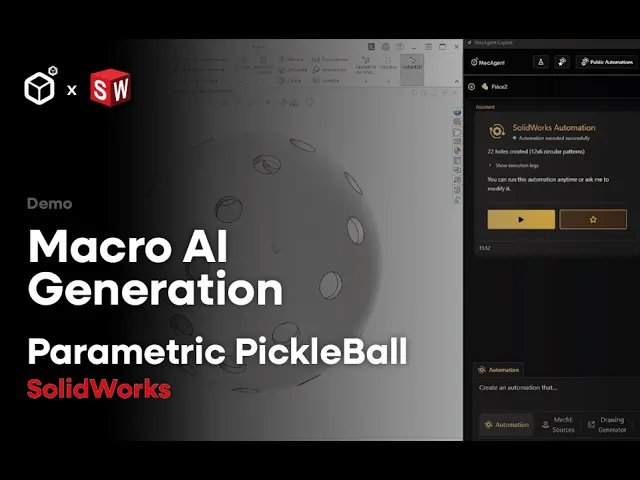

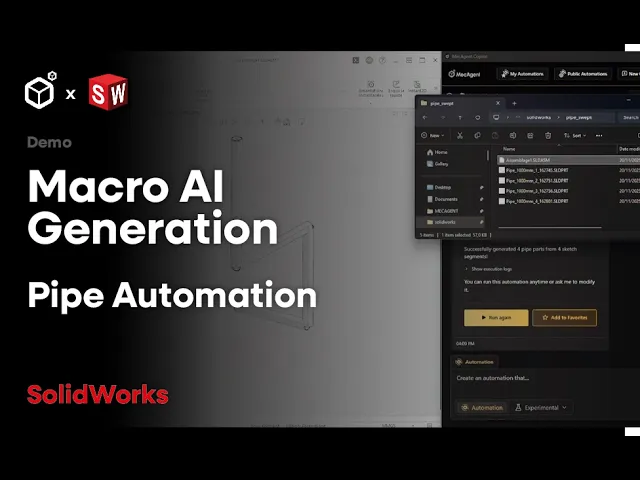

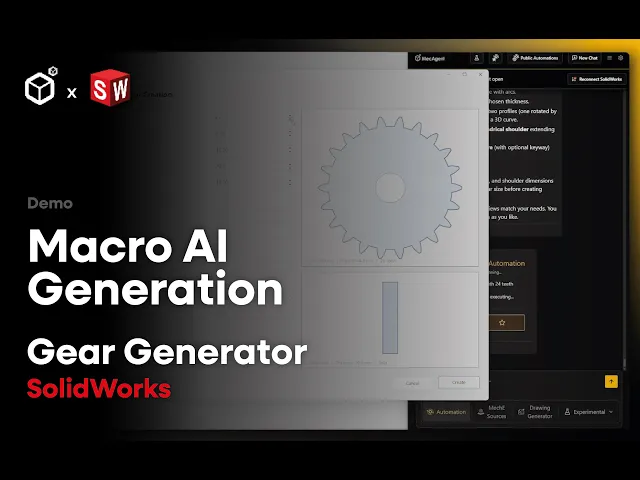

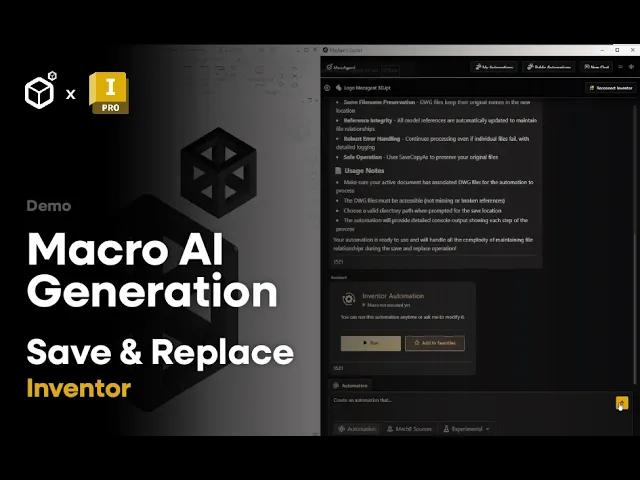

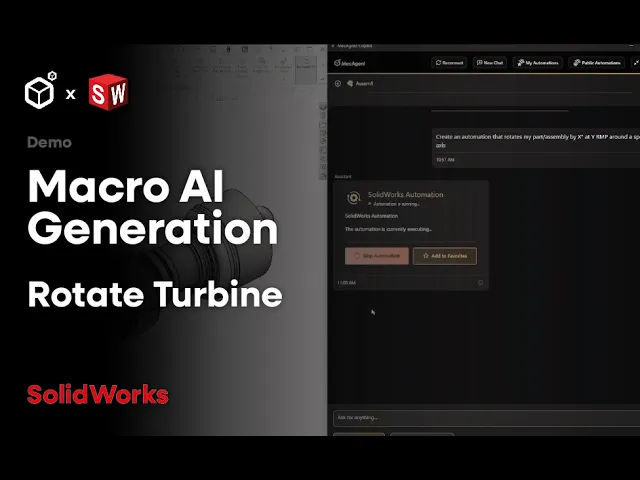

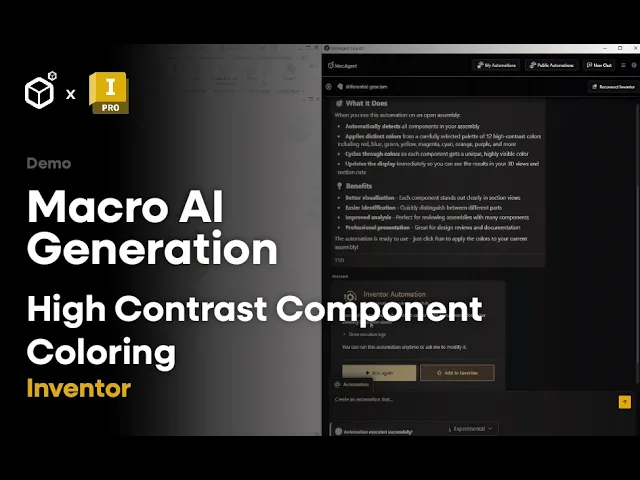

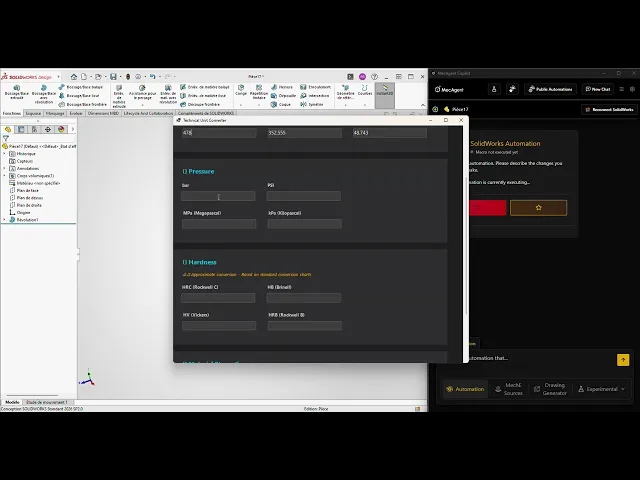

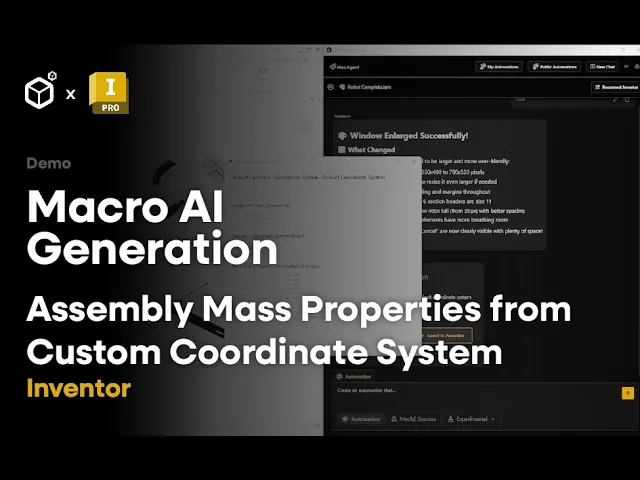

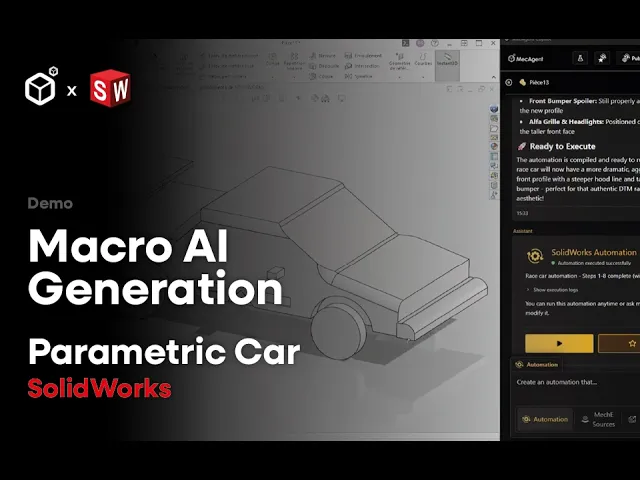

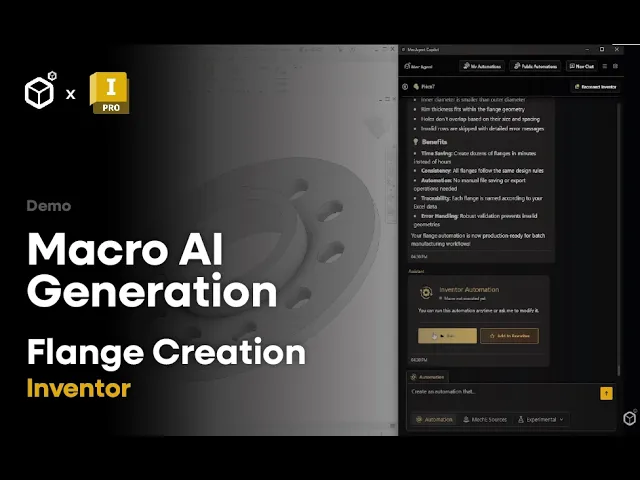

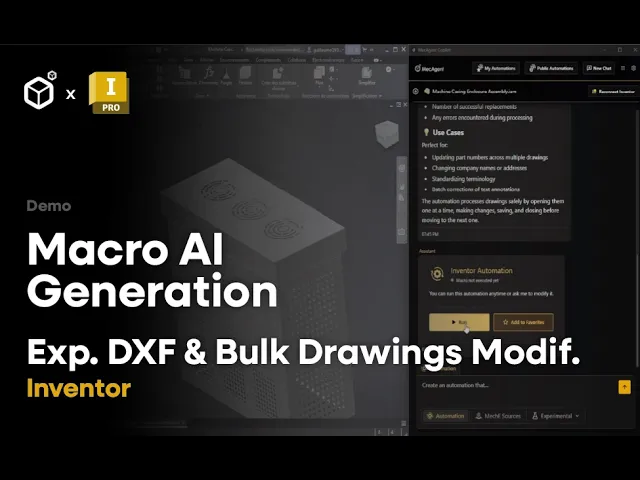

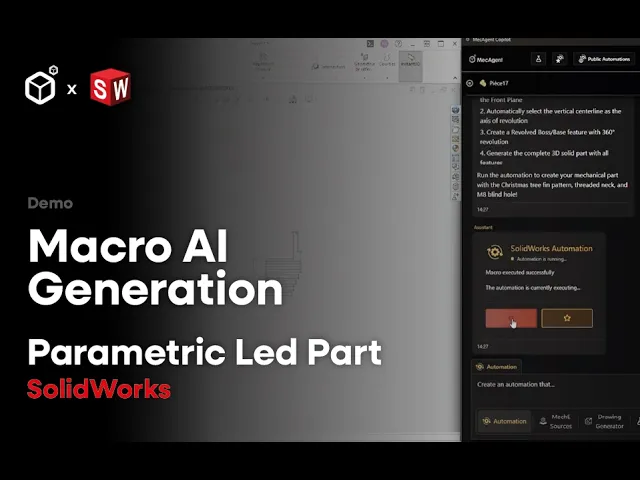

16Macros

Turn any task into a macro you can run again in one click.

Background CAD Tasks· 03

Hand it off, keep modelling

Send a job and get files back while your CAD software stays free for you: drawings from CAD, CAD from drawings, and any task you describe on the files you import.

Every background task can also run live with the CAD Agent, right in your open CAD software.

17CAD-to-Drawing

Send a part or an assembly and get a dimensioned drawing back.

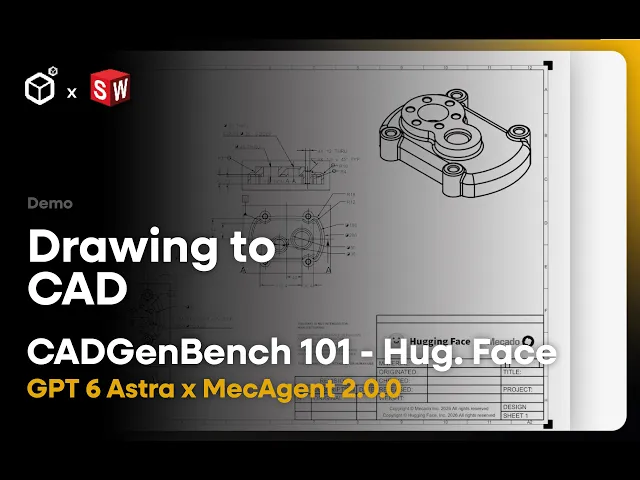

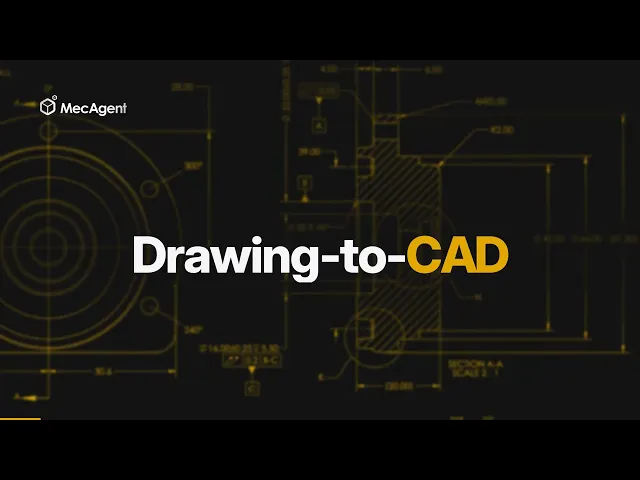

18Drawing-to-CAD

Send a PDF drawing and get an editable native part back.

19Custom

Any CAD task, in the background: import your files, say what to do with them in plain words, and the agent does it in its own CAD software on our servers while you keep modelling.

  • Renaming
  • A specific geometry change
  • Text-to-CAD
  • STEP-to-CAD
  • Materials
  • Exports
  1. 1
  2. 2
  3. 3
  4. 4

Drop any files, say what to do in plain words, then launch.

Describe your task

Add files, say what to do, then launch. Keep working while it runs.

Files and folders
Turbine_assembly· 24 filesUploading
KnowledgePart-numbering.pdf
Instructions

Deliver forSolidWorks 2026
Launch task

Next step

Get started with MecAgent

Describe the part. MecAgent builds it in your CAD software.
