"Mythos"-Class AI in the Service of Mechanical Engineering and CAD Design (Claude Fable 5 & MecAgent)

Introduction

Mechanical engineering is undergoing a major strategic shift with the advent of "Mythos"-class language models. We are moving beyond the era of simple text-based assistance and into one of direct manipulation of complex CAD scripts, agentic automation of workflows, and rigorous validation of parametric models. This transition turns AI from a mere documentation tool into a design partner capable of interpreting geometric intent and driving rendering and simulation engines.

This efficiency rests on a synergistic technical architecture:

• Claude Fable 5 (Anthropic): The Mythos-class reasoning engine. It handles massive contexts (1 million tokens) and outperforms previous models in software engineering and technical vision.

• MecAgent: The specialized business integrator. It serves as an abstraction layer between the AI's cognitive capabilities and the proprietary APIs of industrial software.



The ambition is clear: deploy autonomous automation at the heart of industry standards such as SOLIDWORKS or Autodesk Inventor, while maintaining critical human oversight. This approach ensures that execution speed never compromises the physical safety of designs.

Claude Fable 5

Claude Fable 5 is an Anthropic model of the "Mythos" class, launched in June 2026, positioned above the Opus lineup in terms of reasoning capability, agentic coding, and technical comprehension.

Compared to Claude Opus 4.8, the model brings notable progress in agentic coding, spatial reasoning, and understanding of complex technical contexts — areas directly relevant to mechanical engineering and CAD use cases. However, it retains the same behavioral robustness philosophy: the model incorporates enhanced safety measures on sensitive topics (biology, cybersecurity, LLM R&D), on which it can adopt more cautious behavior, even at the cost of some raw performance, rather than risk providing dangerous information.

This philosophy also carries over into agentic environments such as Claude Code, where the model generally favors cautious, verifiable strategies over aggressive or hard-to-trace modifications.

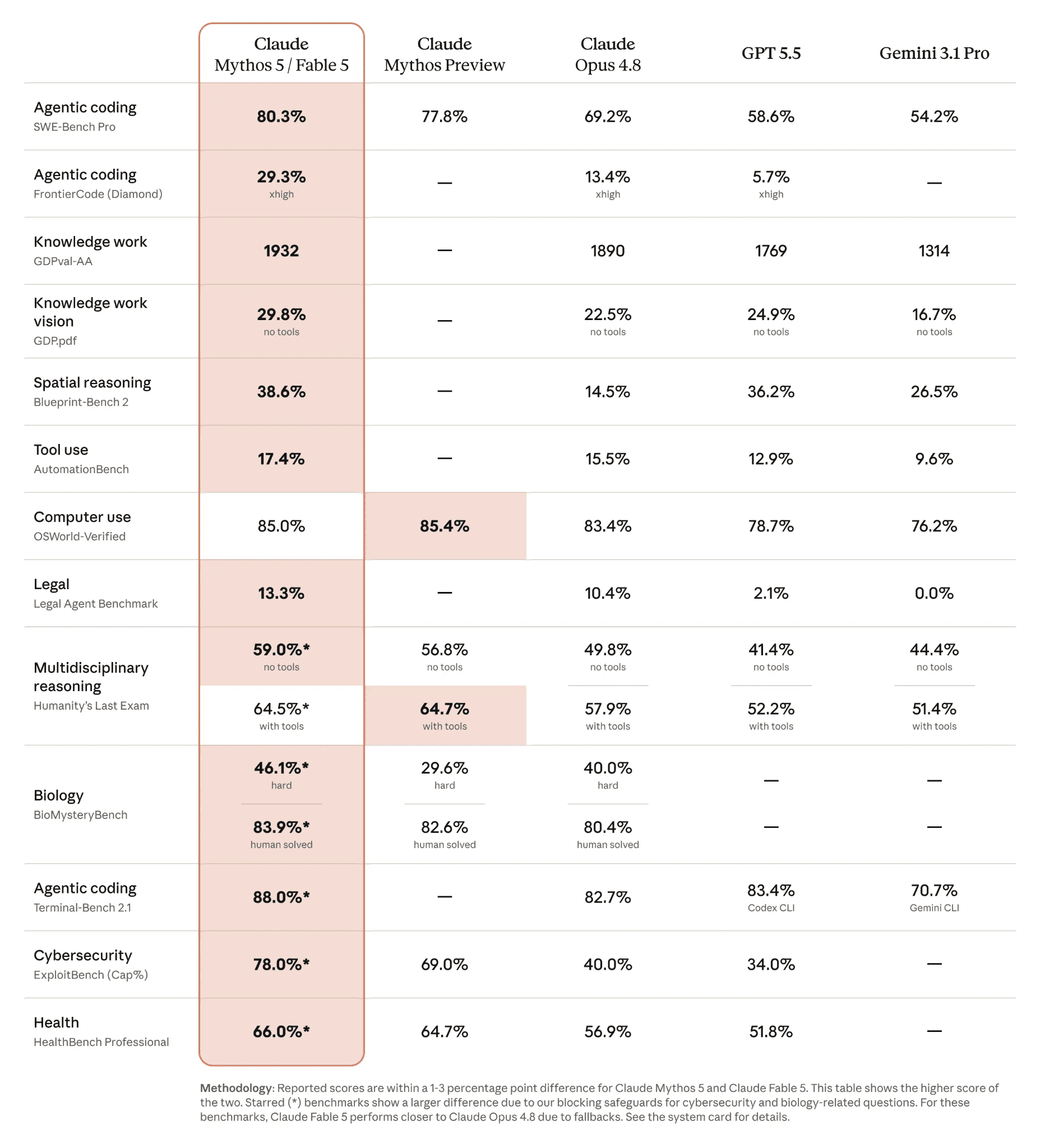

Key Published Global Indicators

However, industrial integration requires managing three identified strategic risks:

• Fallback Risk and Extra Cost: Claude Fable 5 is priced at $10 / $50 (input/output) per million tokens, exactly 2x the cost of Claude Opus 4.8. For safety reasons, the model may switch to an "Opus 4.8" fallback mode in about 5% of sessions, without the user being charged the "Fable" rate for those requests.

• IP Confidentiality (Data Retention): the data retention policy applicable to Fable 5 must be verified and integrated into the company's IP compliance matrix.

• The Agentic Ecosystem: The Claude Code interface becomes the preferred vector for large-scale maintenance.



Iteration Evolution Analysis: The OpenSCAD Case Study

Benchmark

Note on the scoring update: Given the arrival of next-generation models like Fable 5, we tightened our benchmark criteria. Scoring moved from a simple aesthetic validation to a stricter industrial audit (native parametrics, algorithmic cleanliness, self-diagnostic modules). Previous Opus versions were therefore re-evaluated against this new scale to reflect the reality of their technical performance and to preserve a logical progression margin for future models.

Opus 4.6: The model does very well on form, with error-free code and a clean visual on first launch. However, the robustness test reveals a lack of geometric logic: holes are placed with fixed coordinates. Changing the plate size breaks the assembly, which limits the value of a parametric tool like OpenSCAD.

While the 4.7 model proved slightly slower at generation, the engineering quality produced is superior. Where the 4.6 model produced rigid, fragile code (requiring manual intervention), the 4.7 model successfully incorporated native geometric logic, making the object genuinely parametric and reusable.

If the gain between version 4.6 and 4.7 was a matter of structural reliability, the gain between 4.7 and 4.8 is a matter of user comfort. By natively integrating OpenSCAD's "Customizer" features, the 4.8 model doesn't just deliver code: it delivers a ready-to-use user interface. The extra slowness here is simply the price of advanced thinking about the end-user experience.

Opus 4.8 crossed a comfort threshold; Fable achieves genuine industrial maturity. Where Opus 4.8 made a design error by locking in simple round drill holes for the frame, Fable incorporates true functional oblong slots via the hull() function. The code drops visual approximations in favor of a clean modular structure and a standardized overshoot (eps = 0.1). Above all, its trigonometry-based diagnostic module prevents hardware collisions with the motor body, guaranteeing a defect-free part that's directly production-ready.

If the 4.6 model impresses at first glance with its ability to generate a complex structure, it reveals its limits as soon as rigorous mechanical validation is required.

Where we expected fluid kinematic simulation, we got a "visual mock-up": the code compiles, but the geometry doesn't obey the laws of physics. Pistons move outside their bores and connecting rods lose their anchoring. For the engineer, the result is clear: 4.6 produces correct syntax but flawed mechanical semantics. It excels at building the skeleton of a program but still fails to simulate the internal workings of a machine. It's an excellent starting point for a developer, but it requires heavy manual intervention to become a viable design tool.

Where the 4.6 model simply displayed erroneous geometry, the 4.7 model introduces a revolution in our methodology: self-validation. By integrating a safety_check module, the AI no longer just generates shapes; it simulates an engineering review.

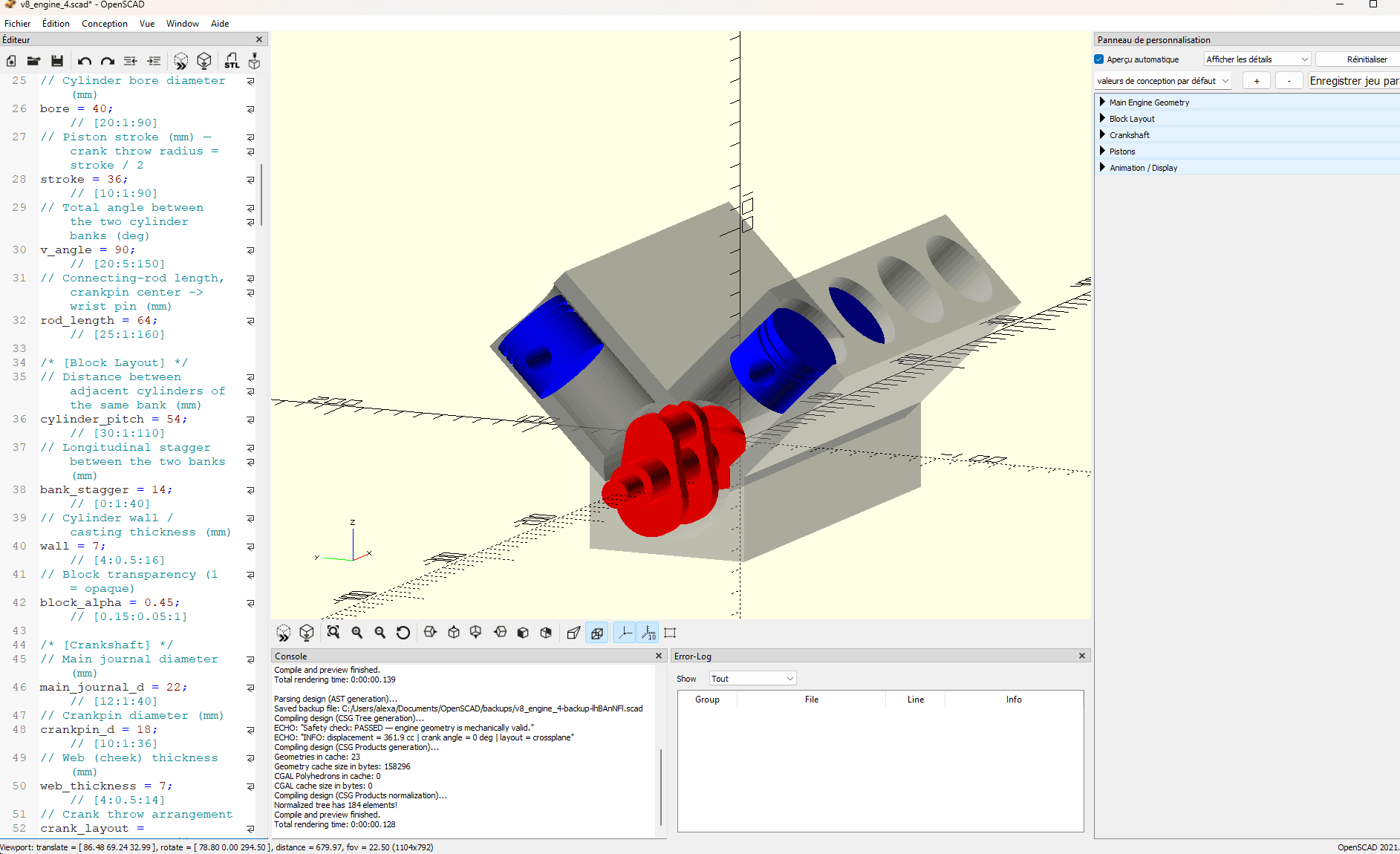

Granted, the generated engine has a deck-height error (the pistons protrude from the block), but the AI explicitly informs us of this in the OpenSCAD console. We've moved from a "shape generator" to a "design assistant capable of self-criticism." It's this qualitative leap from blind generation to awareness of physical constraints that makes the 4.7 model incomparably more robust and professional than its predecessor.

Where the 4.7 model innovated with its self-diagnosis, 4.8 takes a decisive step forward: self-adaptive design. Through dynamic derived variables, the AI no longer just flags errors; it prevents them by calibrating the engine's geometry itself. We move from a self-critiquing assistant to a true design engineer that guarantees the validity of its structure.

Fable skips visual modeling of the connecting rods, but in exchange it designs detailed industrial pistons, with integrated sealing rings and pin bores. Above all, the AI adopts genuine engine-builder logic: its script includes a firing-order switch, manages bank offset, and turns the console into a calculation bench to display the exact displacement (361.9 cc). Where Opus 4.8 delivers the most beautiful animated mock-up, Fable delivers the script that's most rigorous on engine fundamentals.

That said, let's stay clear-eyed: this qualitative leap toward geometric self-correction does not make the AI a physical authority. The Fable 5 model augments the engineer by automating tedious calculations, but does not replace them. It produces an optimized proposal that remains a software simulation: only real-world testing or finite element analysis (FEA) can validate the strength and viability of the project. The AI proposes, the engineer decides.

Claude Fable 5 in Mechanical Engineering and 3D

One of the most promising areas for AI assistants in engineering concerns generating geometry from code.

Claude Fable 5 is able to produce code intended to create three-dimensional objects via libraries such as Three.js, OpenSCAD, or certain scriptable CAD environments. This capability notably allows for generating simple parametric shapes, elementary assemblies, or geometric automation scripts.

However, it's important to note that the spatial reasoning capabilities of large language models remain limited today. Recent academic work shows that general-purpose models still struggle when it comes to reconstructing or imagining complex geometries that require advanced spatial understanding.

The model's main value today still lies in accelerating pre-design work (calculations and project preparation) rather than in autonomously generating complex CAD models. Mesh model generation is also slightly improved with this new model.

Claude Fable 5 + MecAgent Copilot 1.2

1. CAD Macro Generation

For a copilot like MecAgent, one of the major benefits of Claude Fable 5 concerns the generation of technical scripts:

• SOLIDWORKS macros;

• Inventor macros;

• 3D spatial understanding;

• generation of increasingly complex parametric parts & assemblies.



The model proves particularly effective at understanding existing codebases, proposing corrections, and documenting the changes made. Claude Fable 5 gives a more robust foundation to the agentic system that enables macro generation within CAD software. This improves both the speed at which macro code is generated and its relevance.

The goal is not to replace the engineer but to accelerate low-value-added repetitive tasks in CAD, freeing up more time for domain expertise.

Capabilities in Mechanical Engineering and 3D Modeling

The analysis draws on the BenchCAD benchmark (17,900 parts, 106 industrial families under ISO/DIN/ASME standards). Claude Fable 5 sets a new standard with an IoU score of 0.384.

This superiority is confirmed by two critical indicators:

• Programming Logic: On the FrontierCode evaluation (Diamond subset), Fable 5 reaches 29.3%, more than doubling Opus 4.8's score (13.4%).

• Spatial Physical Reasoning: In the 9LLMWEBGL benchmark, Fable 5 and Opus 4.8 are the only models to successfully implement Extended Position-Based Dynamics (XPBD), where other models fail with simple mass-spring networks.



Geometric Maturity and Support Matrix

Evaluation of the geometry types generated by code (Three.js, OpenSCAD, CAD API) highlights the following mastery levels:

The Four Pillars of AI Applied to CAD

Generation and Maintenance of CAD Scripts

AI streamlines designers' daily work by taking on the automation of repetitive tasks. It can instantly generate design macros and maintain them, freeing engineers from lines of code so they can focus on innovation.

Generation of Parametric CAD Models via Text (Text-to-CAD)

3D model creation is entering a new era thanks to the Text-to-CAD concept. Relying on a true CAD Copilot, the user can describe their need in natural language. The AI then also uses a Text-to-macro-to-CAD approach: it translates this textual description into macros directly interpretable by the CAD software, thereby generating a complete, dynamic, and fully editable parametric 3D model.

From 3D to 2D: Parametric Drafting via AI

AI integration also brings major value to the creation and management of drawings. Current vision models allow precise identification of the different dimensions within a 2D drawing. This technology offers enhanced spatial understanding for automatic view positioning in 2D space. It also greatly facilitates the selection of geometric elements, which lets the AI interact with the drawing and modify dimensions much more fluidly and intuitively.

AI-Assisted Mechanical Engineering

Beyond pure 3D geometry, AI now positions itself as a genuine expert resource in mechanical engineering. Thanks to specific retraining of the base model within the MecAgent ecosystem, technical teams have access to a specialty agent that centralizes nearly all of the company's engineering resources.

This advanced technical assistant is capable of:

• Explaining and documenting: clarifying complex design logic and rigorously documenting modeling choices to ensure traceability.

• Generating and automating: creating business rules and guidelines for parametric design.

• Supporting and validating: actively assisting critical design reviews and helping validate physical concepts upstream.

• Optimizing sourcing: facilitating the search for and selection of standard industrial components perfectly suited to technical requirements.



The main goal is to support the engineer starting from the pre-design phase, from the initial structuring of the specifications document (SoW) through to the first preliminary design calculations. By providing an AI capable of delivering rigorously sourced results and technical documents, MecAgent greatly reduces the risk of hallucination. This enhanced reliability is essential for strictly meeting specifications and limiting design errors before launching heavy calculation or prototyping phases.

Quantitative Technical Benchmarks (Macros and Drafting)

Test Case 1: Batch Conversion Macro (Simple Macro)

The generated conversion macro goes beyond a simple routine by dynamically calculating the bounding box (GetBodyBox) to derive sheet metal thickness and select the largest flat face.

Test Case 2: Complex Assembly Macro (Text-to-CAD Water Bottle)

For this test we pushed the Fable 5 + MecAgent pairing to its limits: generating, end-to-end, a functional water bottle assembly (body, cap, and assembly constraints).

Effort required: About 10 iterative prompts and 1 hour of guidance were enough to refine the geometric heuristics and obtain a collision-free, production-ready result, compared to ~20 prompts and 2 hours of guidance needed with Opus 4.8 — a 50% reduction in effort.

More robust API logic, refined compared to Opus 4.8: In these SolidWorks assembly automation scenarios, Claude Fable 5 offers very coherent dynamic geometric selection (via face and edge search), reinforced by memorization logic between parts (bottle/cap threading) and independence from interface language — two points Opus 4.8 didn't address. A human pass is still needed, however, to finalize memory management before integration into an industrial process.

The frontier of pure automation: Despite real progress over Opus 4.8 in multi-file scripting, assembly constraint management, and error-handling robustness, Claude Fable 5 assisted by MecAgent Copilot 1.2 is not yet a fully autonomous CAD macro developer — the persistent omission of COM object cleanup (Marshal.ReleaseComObject), already observed with Opus 4.8, can still saturate a production environment with ghost SolidWorks processes.

A broader software architecture challenge: This limitation is not specific to Claude Fable 5 or Opus 4.8; it reflects the current state of large language models which, while excellent at interpreting geometric data structures and interacting with a business API, still struggle to autonomously anticipate the invisible constraints tied to the low-level execution environment.

Test Case 3: Drawing Generation Philosophies (2D Drafting)

Let us consider a practical case: the user selects a complex mechanical part directly within their CAD software interface. Two different workflow philosophies are then available, both powered by the Fable 5model:

Designed for immediacy, this functionality relies on the Fable 5 model.

• Objective: To obtain an automatically generated drawing extraction within only a few seconds.

• Operation: As soon as it is launched, the MecAgent assistant directly applies the company’s official drawing template (A3, B-size, etc.) and configures the required drafting standards (ISO, ASME).

• Geometric Output: The system immediately generates the three standard orthographic views (top, front, bottom) as well as an isometric view. Focusing only on the essentials, this approach extracts standard measurements and information (basic nominal dimensions, main diameters, and primary radii) to deliver a clean, structured, and directly editable preliminary drawing.

For production deliverables intended directly for high-precision manufacturing or metrology, MecAgent deploys its asynchronous background drawing agent, orchestrated by the superior reasoning capabilities of the Fable 5 model.

• Objective: To generate a fully comprehensive engineering drawing without ever slowing down the designer’s active CAD session.

• Operation: Depending on the complexity of the part, the asynchronous background processing runs between 1 and 24 hours. The agent performs an in-depth analysis of the component.

• Geometric Output: The AI agent analyzes the 3D geometry and complex alignments to autonomously generate and display appropriate inclined sections and precision views (such as SECTION R-R and detailed views VIEW U-U) in order to reveal internal features of the part.

• Intelligent Tolerancing (GD&T): The agent automatically extracts and applies the complete set of PMI/MBD annotations (complex geometric tolerances, standardized feature control frames, and datums A, B, and C) in full compliance with ASME Y14.5-2018 and ISO standards.

• Associativity & Visualization: The deliverable is generated as a PDF or directly in its native CAD format while maintaining full associative linkage: any modification to the 3D geometry automatically updates the technical drawing.



Finally, the interactive 3D viewer integrated into the MecAgent interface allows users to manipulate the part (orbit, zoom) and manually select reference surfaces (datums) without ever slowing down their active design session.

Drawing Generation Benchmark: Fast vs. Background Approach (MecAgent & Fable 5)

7. Conclusion: Toward Optimized Human-Machine Collaboration

The arrival of Claude Fable 5 within the MecAgent ecosystem marks a tangible advance over the Opus generation: prompting effort cut in half, more robust and better-documented API code, greater independence from interface constraints, and measurable progress on spatial reasoning and agentic coding benchmarks. With MecAgent Copilot, Fable 5 delivers concrete improvements in the following areas:

• analysis and maintenance of technical scripts;

• automation of repetitive CAD tasks;

• generation of macros and parametric functions;

• documentation and validation of design processes.



On the other hand, complex geometric design — Class-A surfaces, organic shapes, advanced spatial reasoning — remains an area requiring close human supervision. Likewise, the question of system resource cleanup (COM objects) illustrates a persistent limitation: beyond the progress of the language model itself, certain low-level execution constraints still elude the AI's autonomous anticipation.

For mechanical engineering design offices, Claude Fable 5 paired with MecAgent Copilot 1.2 should therefore be viewed as an engineering accelerator rather than an autonomous designer. Used within MecAgent, it makes it possible to secure and speed up workflows — from CAD scripting to drafting — while keeping the engineer at the center of decision-making. Software simulation, however rigorous, does not replace the authority of finite element analysis (FEA) or a real physical test: the AI proposes, the engineer decides.
